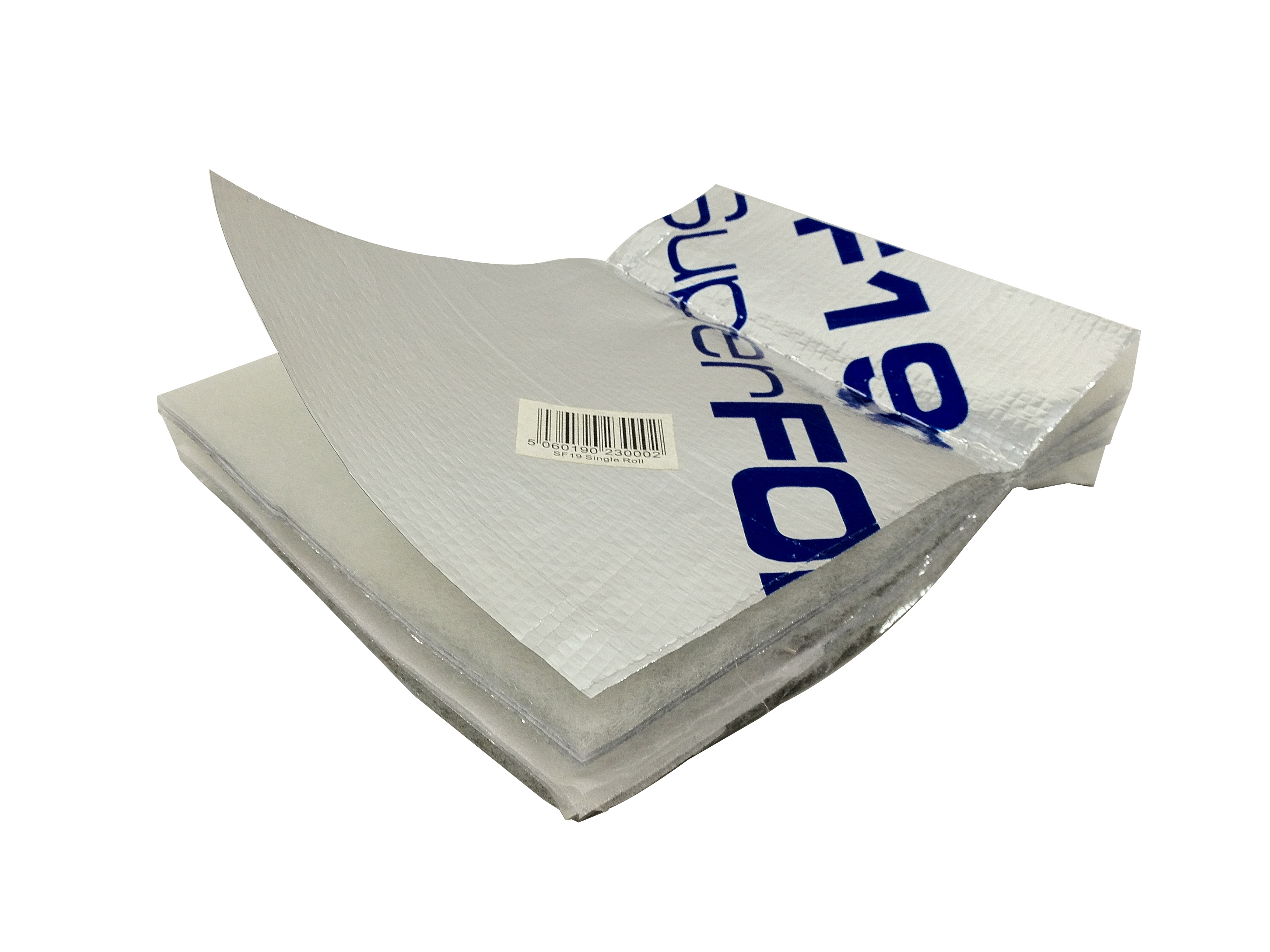

Technical Information Super Foil Insulation - SF19

DESCRIPTION LAYERS

Reinforced heavy duty double foil laminated outer layers - 2

Aluminum coated reflective foil PET layers - 6

Thermo foam separation layers - 8

Loft quilt 80g/sqm layers - 3

Total layers - 19

KEY FEATURES

BBA Certified with an R value of 2.27 in roofs & 2.73 in walls

SF19 is LABC Registered System approved

CE certified for its performance as a vapour and water barrier

Fully woven outer foil layers make SuperFOIL the strongest multifoil material further aiding installation and reducing waste

Manufactured with 40% recycled materials and is recyclable at the end of its useful life

Non hazardous with no special requirements for installation or disposal of waste

“COMBI” installation methods allow use with any other form of insulation insulation

SF19 has been tested to BS EN 12667, ISO8301 by BBA a UKAS Accredited laboratory

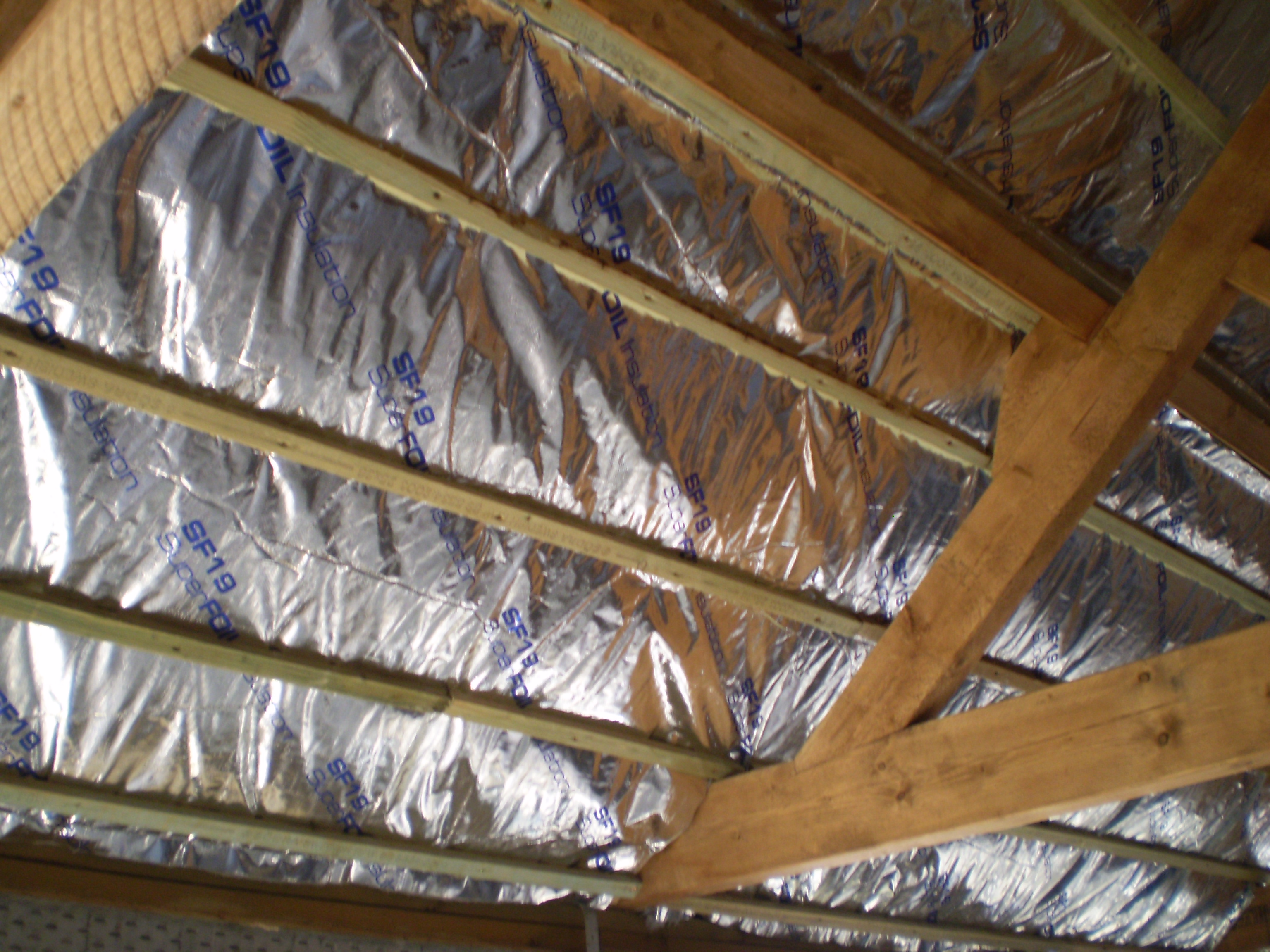

Can be used in Roof, Walls & Floors for both New build and retrofit applications

• Dimensions packed: 1.5m x 420mm
• Flat Roof: R-value = 2.13
• Pitched Roof: R-value = 2.27
• Roll dimension: 1.5m x 12.5m
• Thickness installed: 40mm
• Total area per roll: 18.75 sqm
• Wall: R-value = 2.73
• Weight per roll: 13kg
